Telemetry Card & Modular Interface Products

Acroamatics offers the most powerful array of effective PCI based Telemetry processing card and interface module solutions in the world. Acroamatics PCI telemetry modules are each delivered with all of the the Windows set-up and operating software, I/O cabling, and documentation you’ll need to tackle even the most challenging telemetry processing system integration tasks.

Has Telemetry Market Vendor Consolidation and Downsizing Resulted in Obsolescence of Your Current Telemetry Decom Card or Data Processing Solution? If so, Acroamatics Telemetry Systems can provide turn-key, long-term replacement solutions – TODAY.

With an impeccable reputation for product innovation and support serving aerospace defense companies and government test ranges worldwide, Acroamatics has been the leading choice for engineering lab, production test, and range T&E missile and aircraft telemetry test needs.

Model 1635AP Real-time PCIe Programmable Data Stream Processor

Acroamatics’ Model 1635AP is a powerful, low latency multi-stream telemetry Programmable Data Stream Processor which serves as the hub of Acroamatics’ industry leading real-time range Telemetry Data Processing (TDP) product line.

Model 1635AP Real-time PCIe Programmable Data Stream Processor

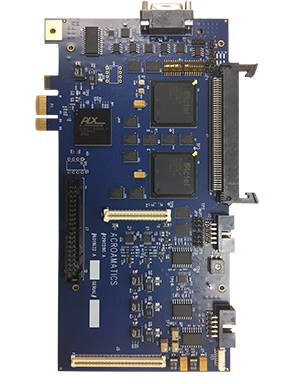

Model 1632AP Dual Channel PCIe ‘all-in-one’ Telemetry Processing Card

Acroamatics’ Model 1632AP 40 Mbps PCIe dual stream telemetry decom and data distribution processing module is the hub of our fourth generation TDP family of telemetry processing product technology.

Model 1632AP Dual Channel PCIe 'all-in-one' Telemetry Processing Card

Model 674DM Advanced Dual PCM Bit Sync Mezzanine

Acroamatics’ Model 1635AP is a powerful, low latency multi-stream telemetry Programmable Data Stream Processor which serves as the hub of Acroamatics’ industry leading real-time range Telemetry Data Processing (TDP) product line.

Model 674DM Advanced Dual PCM Bit Sync Mezzanine

Model RDM207 Digital RF Receiver


The compact RDM207 Single Channel Digital RF Receiver is an integrated solution consisting of an RF Signal Processor, 2 Demodulators, 2 Bit Synchronizers and 2 Frame Synchronizers contained on a single slot PCI card.

Model RDM207 Digital RF Receiver

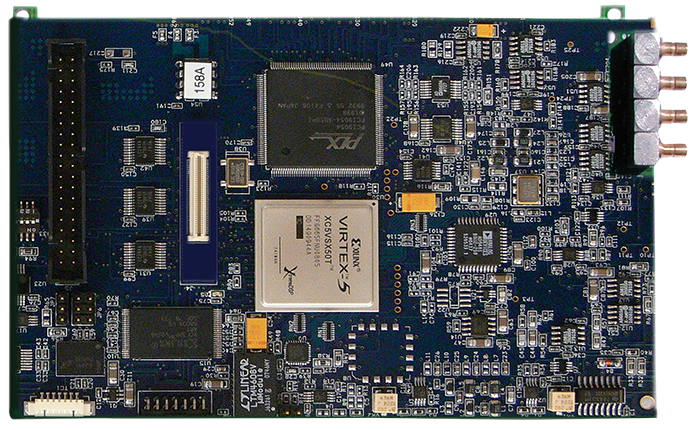

Model 474DM Tunable PCM Bit Sync Mezzanine

Acroamatics’ Model 474DM Advanced Digital PCM Bit Sync is a compact ‘mezzanine’ design that provides a cost effective and modular high quality bit sync add-on to Acroamatics’ line of single slot PCI TM processing card products.

Model 474DM Tunable PCM Bit Sync Mezzanine

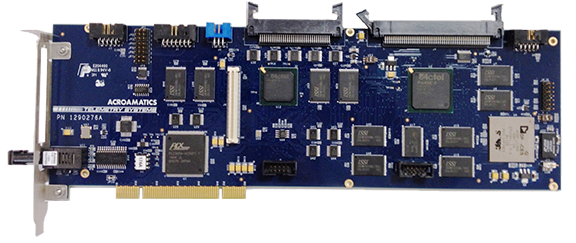

Model 1615 PCI Real-time Data Distribution and Programmable Data Stream Processor

Model 1615AP is a powerful PCI card-based low latency DSP based multi-stream telemetry Programable Data Stream Processor.

Model 1615 PCI Real-time Data Distribution and Programmable Data Stream Processor

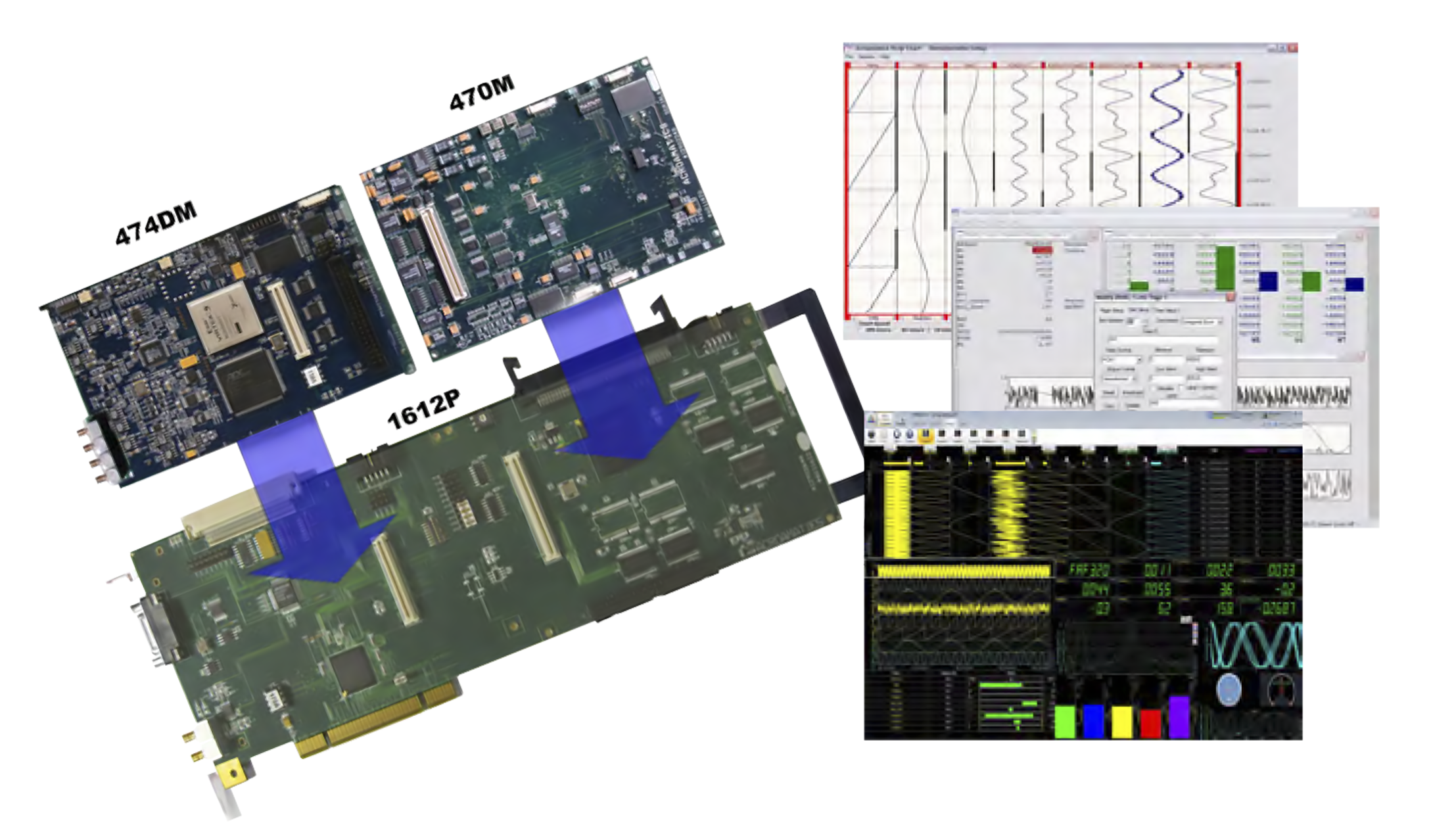

Model 1612AP Advanced PCI Telemetry Decom Processing Cardset

Model 1612AP card embedded telemetry decom and multi-function processing module features the highest data rate and processing speeds in the industry, yet retains 100% “drop-in” compatibility with legacy Acroamatics PCI TDP products and systems.

Model 1612AP Advanced PCI Telemetry Decom Processing Cardset

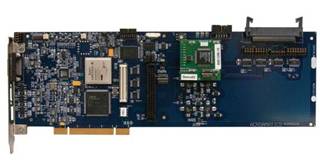

Model 1611AP PCM Bit Synchronizer PCI Card

Model 1611AP is a Digital Bit Synchronizer featuring an advanced design that supports data rates from 8 Hz to 72 MHz. The design of the bit synchronizer uses the latest techniques in FIR filtering, digital phase-locked loops, NCO clock reconstruction, and digital amplitude and offset control.

Model 1611AP PCM Bit Synchronizer PCI Card

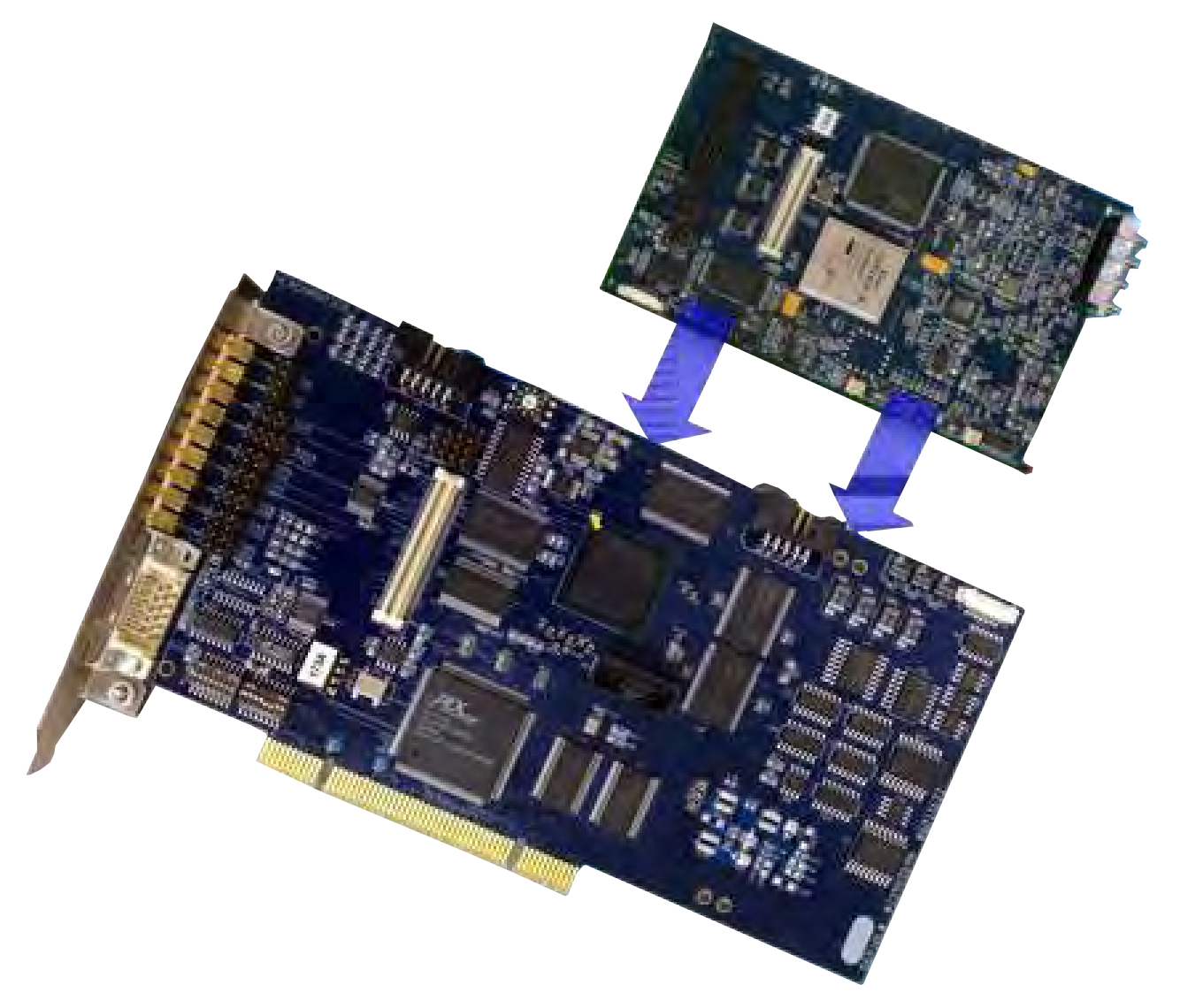

Model 1622AP PCI Single Board Data System

Model 1622AP delivers high rate processing speeds and capabilities with 100% ‘drop-in’ compatibility with existing Acroamatics PCI TDP family products.

Model 1622AP PCI Single Board Data System

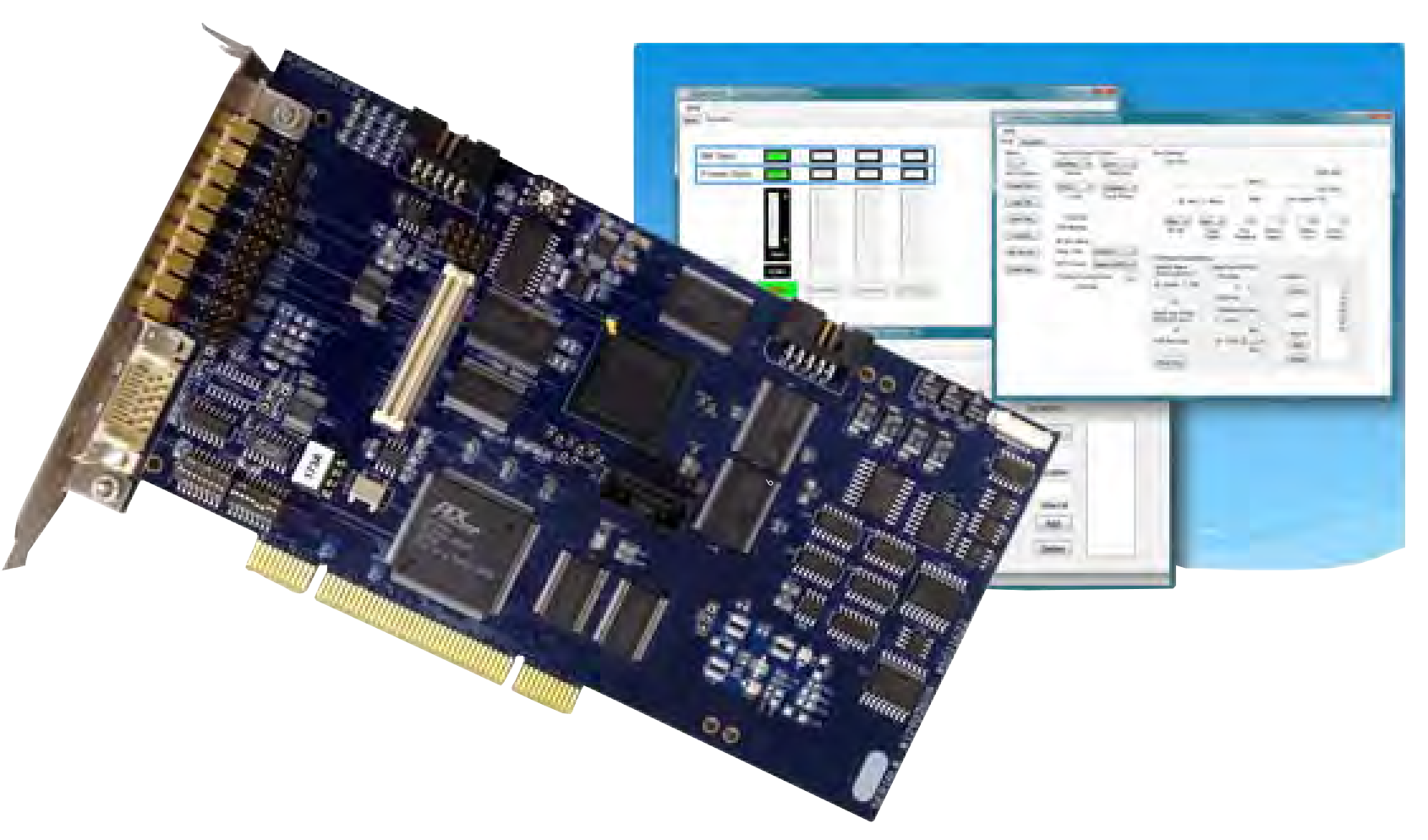

Model 1626P Multi-channel PCM Quick-look Processor

Model 1626P was designed to do basic frame synchronization & decommutation for applications such as data recording & post-analysis, where powerful embedded frame and word level decom output data formatting for 3rd party post-test or real-time EU processing software is desired.

Model 1626P Multi-channel PCM Quick-look Processor

Model 1650P Frame Sync Verification Unit

Acroamatics’ Model 1650 PCI 1650 Frame Synchronization Verification Unit contains eight PCM Decommutators that are designed for PCM stream quality verification.

Model 1650P Frame Sync Verification Unit

Model 470M Time Code Generator Translator and PCM Format Simulator Module

Acroamatics’ Model 470M is a mezzanine card that reads, translates, and generates IRIG A / B/ G and NASA-36 amplitude modulated time code signals.

Model 470M Time Code Generator Translator and PCM Format Simulator Module

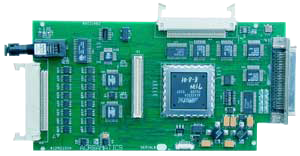

Model 482M Analog Processor Mezzanine

Acroamatics’ Model 482M is a mezzanine card for the PCI-bus Model 1605P. Two configurations are available.

Model 482M Analog Processor Mezzanine
