Telemetry Data Processing & Simulation Systems

Acroamatics’ Telemetry Data Processing and Simulation System (TDPSS) offers a flexible, configurable, and expandable solution for today’s telemetry decommutation processing and display requirements. This multi-function system addresses all of the common telemetry range functions in a single integrated system.

The system can be configured with front-end functions such as RF/IF Receivers, Bit Synchronizers, and Frame and Sub-Frame Synchronizers. The heart of the system performs multi-stream data decommutation, providing unique ID tags and time tags for each measurement at ingest. Decommutated data can then be sent to high-performance, real-time processors which perform engineering units conversion, limit checking, derived measurement processing and other functions without bogging down the host central processing unit (CPU). The resulting raw or processed measurements can then be recorded or displayed. Playback of recorded data can be used to regenerate PCM stream for processing by TDPSS decommutators and real-time processors or be analyzed and displayed. Each input PCM stream has an associated simulator/ encoder function which can be configured to support multi-stream mission and ground system checkout and set-up validation.

Did you know Acroamatics can provide education and training courses for their Telemetry Processing and Display Frame Synchronization and Decommutation Subsystems? Training includes configuration, operation and maintenance for Acroamatics’ processing and display software and hardware products. Courses can be custom tailored to meet specific requirements and are offered at the California office, sister division offices, or the client’s location of choice*. Courses offered include:

  • TDP Software Configuration: Bit Sync, Frame Sync, Decom Bit Sync, EU Processing, and Best Source Selector Operation
  • Installation, Operation, and Understanding of Acroamatics’ TDP Equipment

Model 2900AP Real-time Telemetry Data Processor/Server

Acroamatics Model 2900AP TDP systems easily accommodate requirements that range from one to eight (8) IRIG 106 Chapter 4 Type 1 & 2 PCM stream decommutation, real-time EU processing, and analysis.

Model 2900AP Real-time Telemetry Data Processor/Server

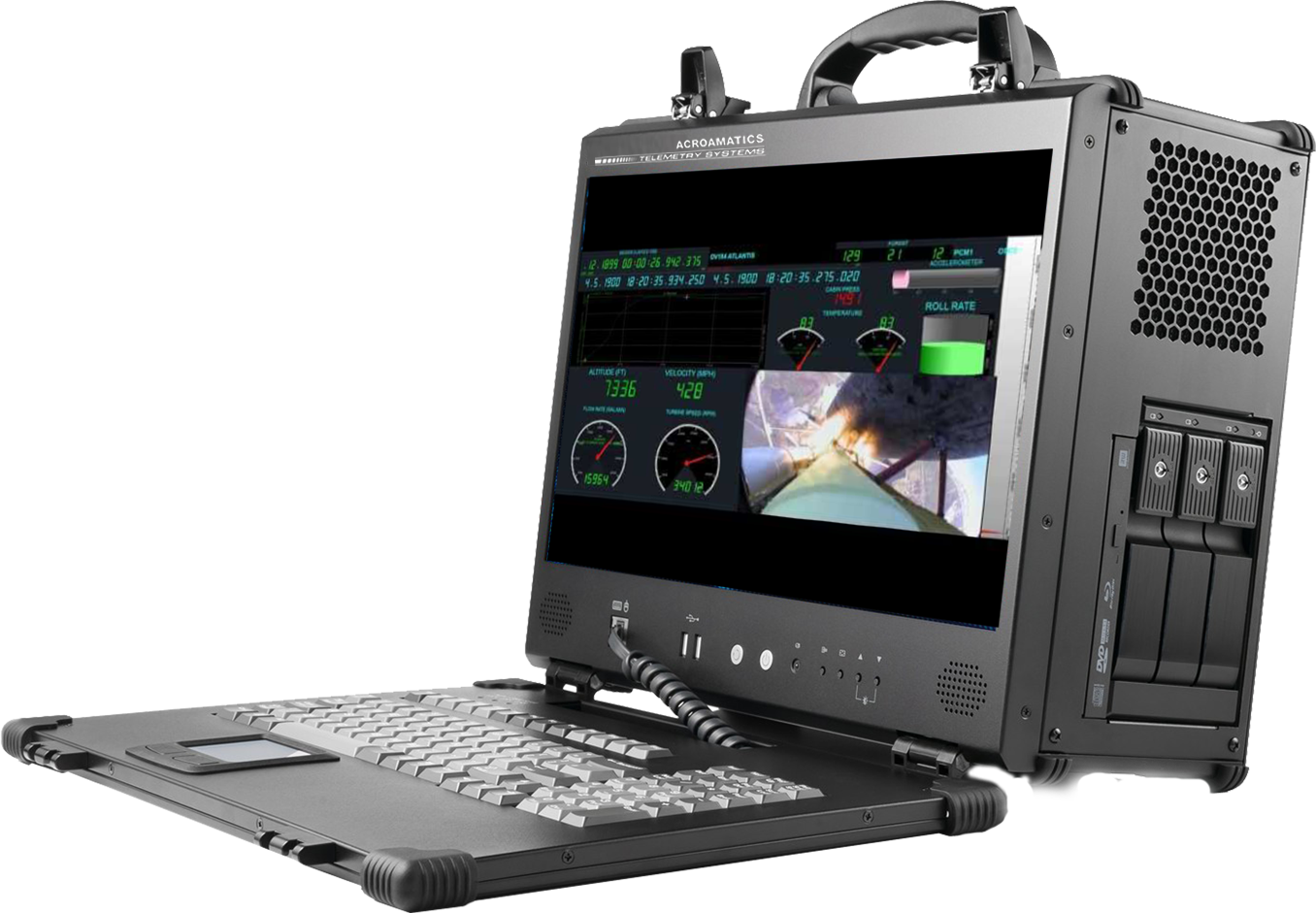

Model 3022AP Real-time Portable Telemetry Data Processor

Acroamatics Model 3022AP is a 3rd generation portable, low-latency multi-stream telemetry data processing and analysis unit. Based on Intel Core i7 motherboard technology, its PC chassis provides the ideal platform with which to host low-latency, card-embedded multi-function telemetry processing cardsets.

Model 3022AP Real-time Portable Telemetry Data Processor

Model 2500AP Real-time Compact Telemetry Data Processor

Acroamatics’ Model 2500AP is a third generation portable, low-latency multi-stream telemetry data processing and analysis unit.

Model 2500AP Real-time Compact Telemetry Data Processor

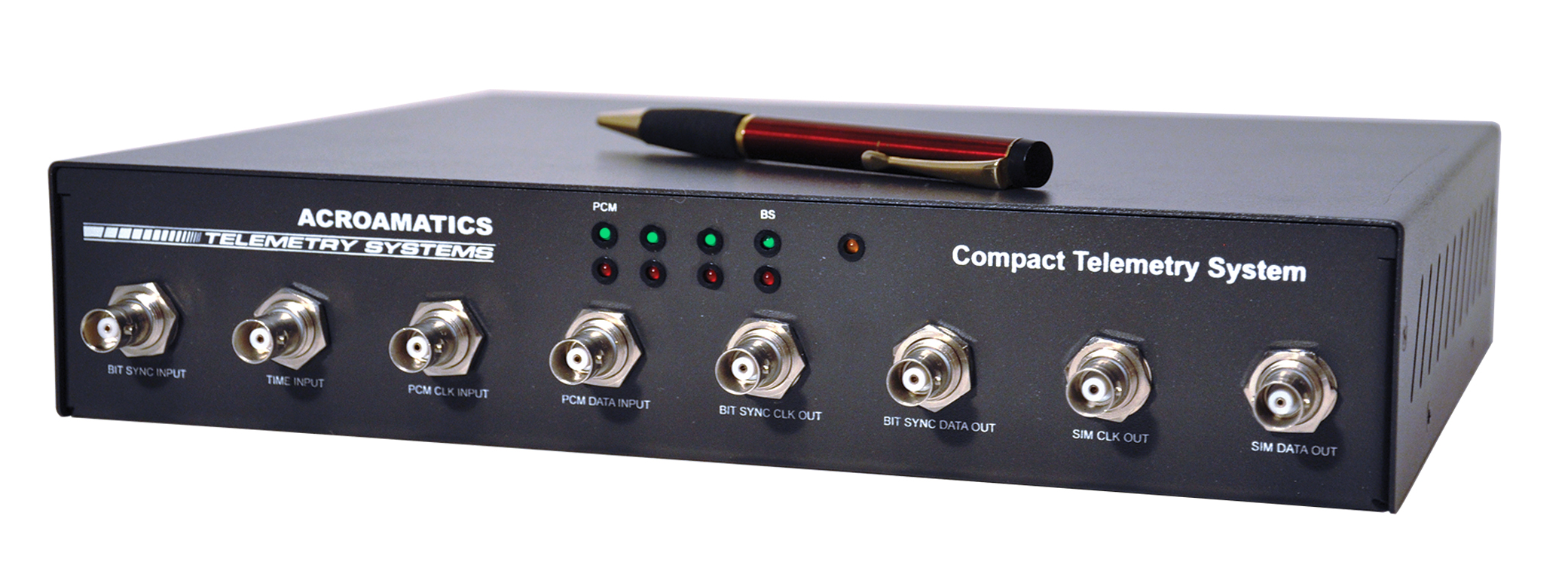

Model 4032AP Compact / Portable Telemetry Data Processor

Acroamatics’ Model 4032 Compact Telemetry system is a remarkably size and cost effective single/dual stream PCM storage and processing solution, capable of ingesting serial PCM with or without synchronous clock in any IRIG approved PCM code format.

Model 4032AP Compact / Portable Telemetry Data Processor

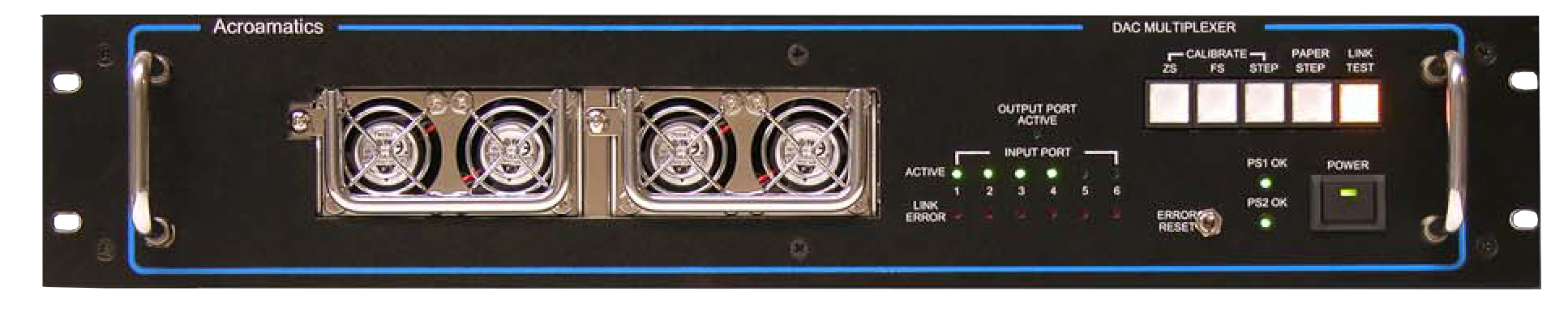

Model 2425 PCI Telemetry DAC Multiplexer

Acroamatics’ Model 2425 is a deterministic, Low Latency, fiber-driven DAC Strip Chart Multiplexer. Each DAC Multiplexer chassis enables up to 6 Model 2900 Telemetry Data Processor systems to send serial DAC and Discrete data messages to as many as eight 8-channel chart recorders (a total of 64 channels).

Model 2425 PCI Telemetry DAC Multiplexer

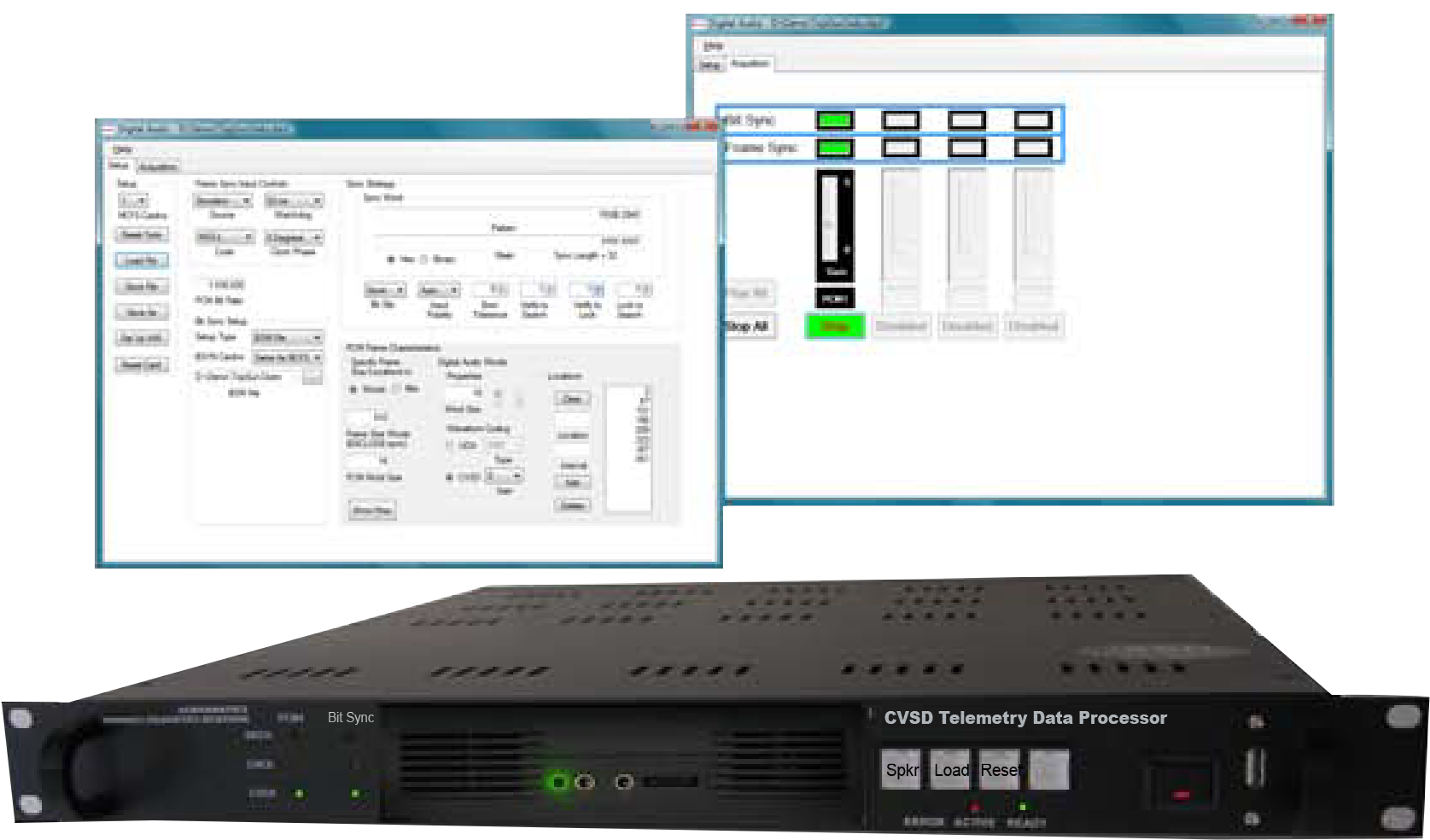

Model 2625P Compact CVSD Processor

Acroamatics’ Model 2625P CVSD Telemetry Data Processor fills an important gap in range ground station data communications and mission support hardware. The 2625 ease of use, simplicity of design, and low latency processing design make it an obvious choice.

Model 2625P Compact CVSD Processor
