Our 3rd generation telemetry receiver design provides comprehensive multi-link support for satellite and flight test ground station applications in a fully integrated package.

Our telemetry receiver design features FPGA based signal processing and software defined radio technology in the form of digital telemetry receivers, waveform & signal processors. A variety of tunable frequencies (RF, IF & Subcarrier), configurations (Single, Dual, Quad) and waveforms (AM, FM, PM, DPM, PCM/FM, B/O/SO/AU/QPSK, GMSK, FM/PSK, PM/PSK, SGLS, ARTM Tier 0, 1 & 2 ) are available with standard data rates from 40Mbps down to 5bps.

Due to its integrated FPGA technology this telemetry receiver product includes optional pre/post diversity combining, embedded bit synchronizers, independent frame synchronizer pattern detectors and a variety of FEC options including but not limited to Viterbi, Reed-Solomon (CCSDS) and LDPC. Options are also available that support Gig-Ethernet chapter 10 output of data directly from the telemetry receiver module, IRIG time input and an encapsulated data/signal quality output for the diversity combining best source selector. This state-of-the art telemetry receiver product line provides a compact, cost competitive, flexible solution to a wide variety of communications link scenarios.

  • Advance Combiner Function (AGC & Data Quality)
  • Adaptive Equalization (Watch Video / View Performance Evaluation)
  • Integrated RF/IF/Subcarrier/Demod/Bit Sync
  • PCM/FM (ARTM Tier 0), SOQPSK-TG (ARTM Tier 1)
  • Multi-H CPM (ARTM Tier 2), STC
  • PM, DPM, PM/PSK, FM/FM, PCM
  • BPSK, QPSK, AQPSK, UQPSK, SOQPSK, GMSK
  • NEW! 70MHz Test Modulator Output function
  • FEC: LDPC, Viterbi, Reed Solomon
  • Best Source DQE/DQM Output
  • Frame Sync Verification
  • IRIG106 Chapter 7 Decoding
  • IRIG106 Chapter 10 Output
  • Direct Ethernet TMoIP Output
  • 5 bps to 40 Mbps

In addition to GDP Space Systems unique 4-Input Diversity Combiner Function and our Ethernet Outputs supporting IRIG 218-20, IRIG 106 Chapter 7 / Chapter 10, and IRIG 106-17 Appendix 2G Best Source Selection (DQE), the Model 4426 Digital RF Telemetry Receiver product line is now available with an internal 70MHz Test Modulator Output function!

Model 4426 Digital RF Telemetry Receiver is available in single, dual or quad channel configurations in a 2U or 3U rack-mounted chassis. Each channel is completely independent and includes an integrated solution consisting of a RF Signal Processor, Demodulators, optional Bit Syncs and Frame Syncs.

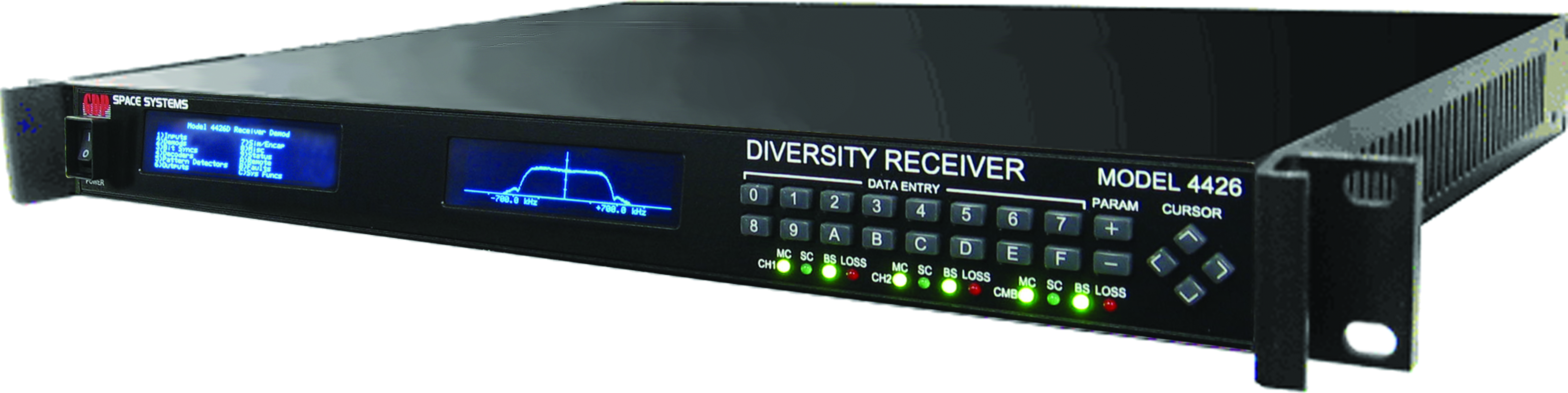

Model 4426 Digital RF Telemetry Receiver is available in a 1U rack-mounted chassis. Each channel is completely independent and includes an integrated solution consisting of a RF Signal Processor, Demodulators, optional Bit Syncs and Frame Syncs.

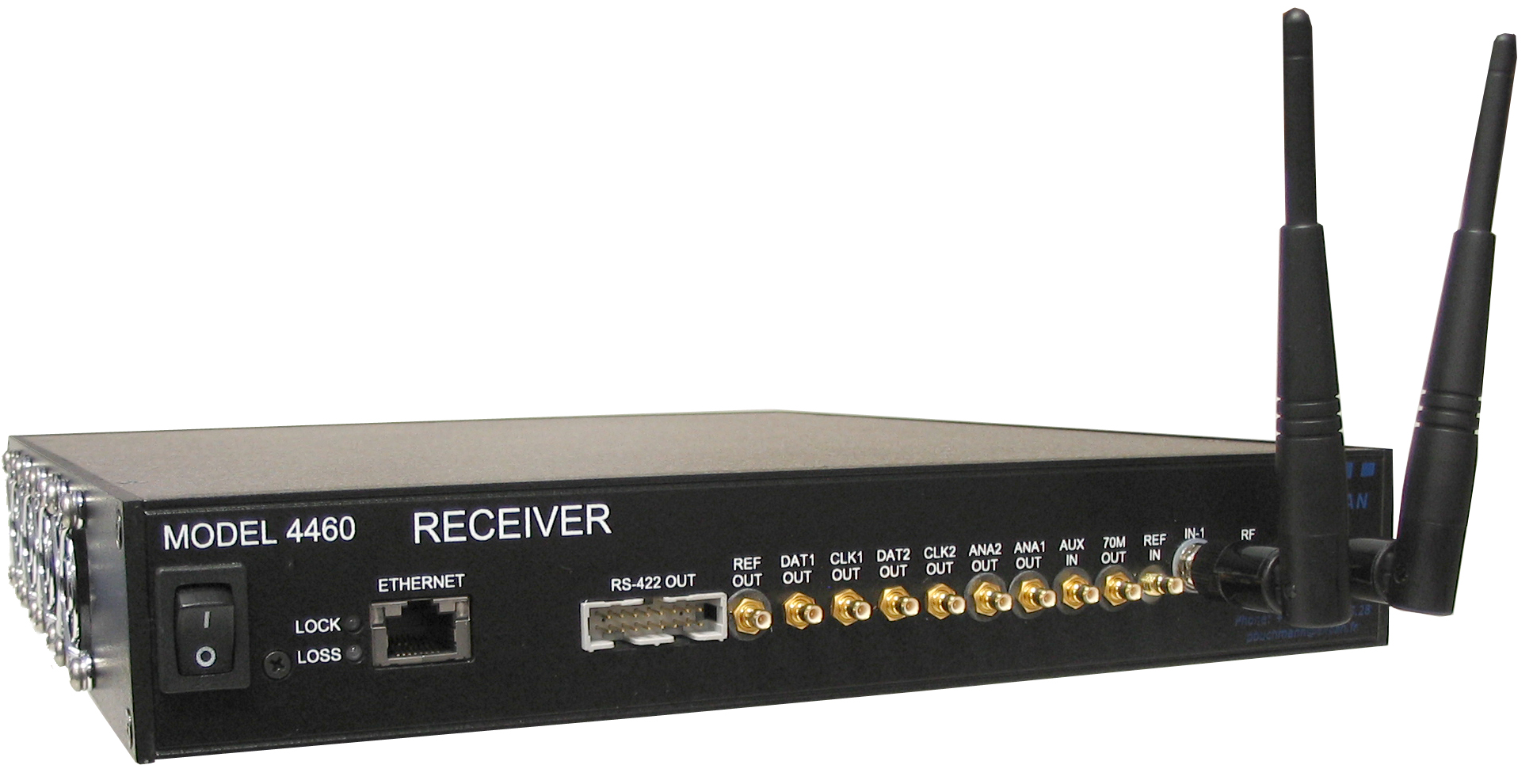

Model 4460 Single Channel Digital Telemetry Receiver is a lightweight, portable unit powered by a standard laptop power supply. It may also be run from a standard laptop external battery unit.

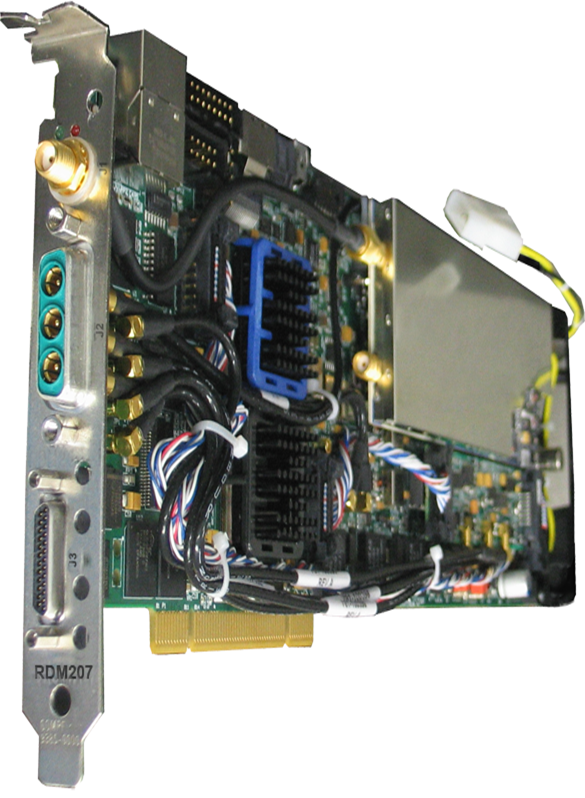

Model RDM207 (PCI) Single Channel Digital RF Receiver is a consists of a RF Signal Processor, 2 Demodulators, 2 Bit Syncs and 2 Frame Syncs contained on a single slot PCI card. RDM207 provides a compact, cost competitive, and flexible solution to a wide variety of communications link scenarios.

For information about the legacy products we support but no longer supply the software or hardware, click here
