Simulation & Link Validation

The GDP BERT products all include full and independent transmit and receive paths. Generated test data streams are monitored at the return link where errors are detected and reported. Test data may be manipulated to produce intentional errors to simulate unique conditions so as to stress the components of the link. Generated data can be standard maximal-length pseudo-random as well as fixed and user-defined patterns.

Some optional features are also available that support stressing the unit(s) under test (i.e. Signal Level, DC / AC Signal Offset, Rate Jitter, Noise injection …) Virtual Interface remote control software is available for control and plotting of test results (i.e. Noise performance, Jitter performance).

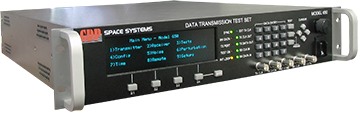

Model 650 Single Channel Data Transmission Test Set


Model 650 Data Transmission Test Set fills the need for high performance data-link verification and qualification at an affordable price. The user is provided with totally independent transmit and receive functions to allow rapid fault isolation and data link characterization

Model 650 Single Channel Data Transmission Test Set

Model 652 Dual Channel Data Transmission Test Set

Model 652 Data Transmission Test Set provides the user with two totally independent channels, and each channel provides independent transmit and receive functions.

Model 652 Dual Channel Data Transmission Test Set

Model 2628AP
Multi-Stream Programmable
PCM Simulator

Acroamatics Model 2628AP PCM Simulation System is a compact, integrated PCIe card based multi-channel PCM Simulator.

Model 2628AP Multi-Stream ProgrammablePCM Simulator

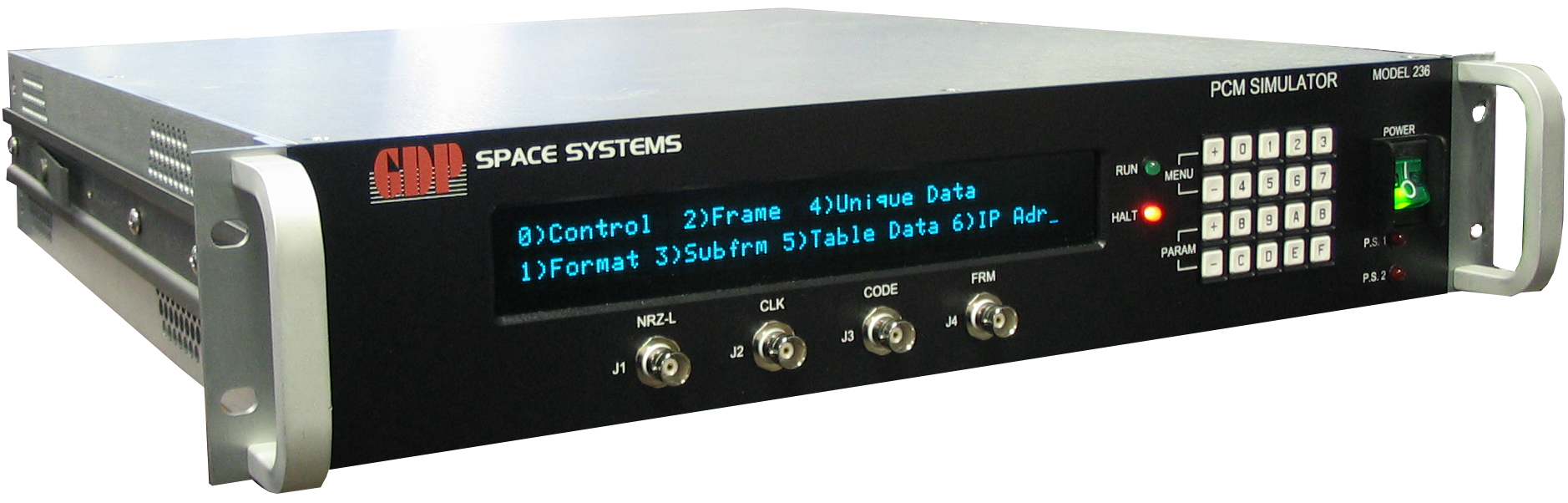

Model 236 Programmable PCM Simulator

Model 236 PCM/PAM Simulator addresses the need to perform cost-effective PCM or PAM clock and data simulations. The unit facilitates widespread use of PCM by combining the most desired application features users into one unit.

Model 236 Programmable PCM Simulator

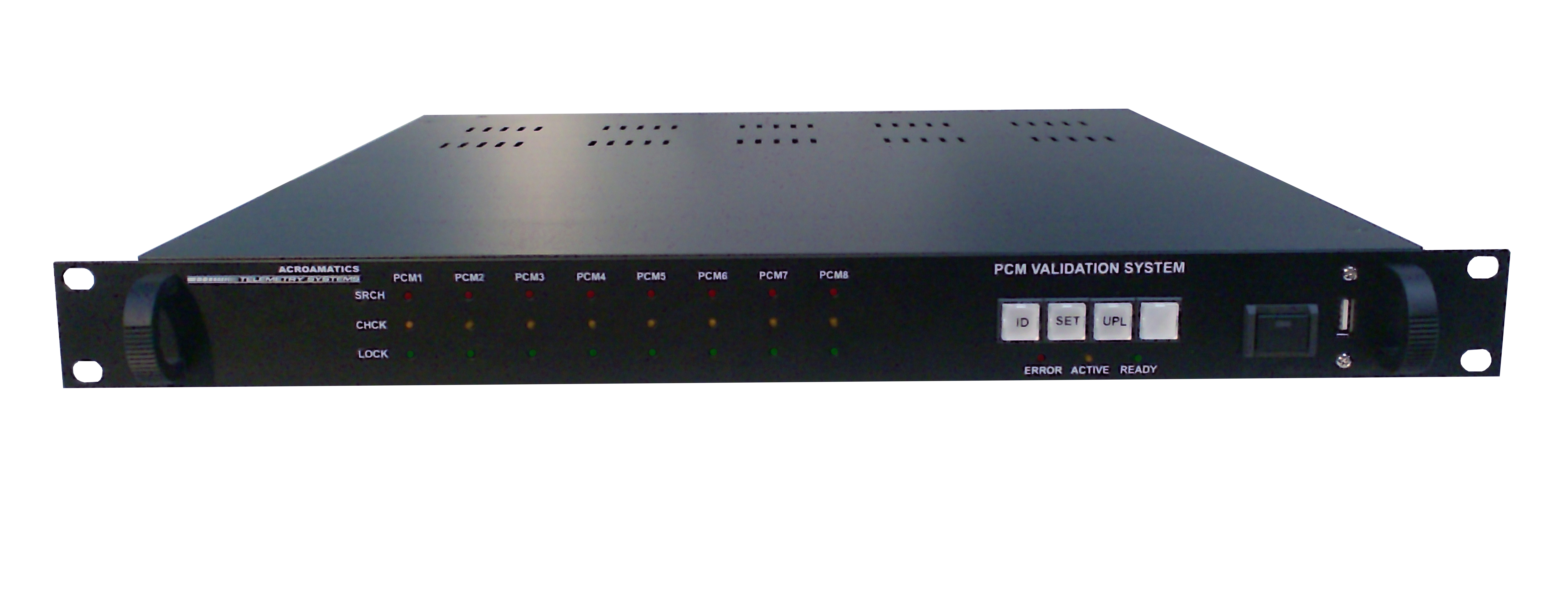

Model 2618P PCM Frame Validation System

Acroamatics’ Model 2618P-16 PCM Frame Validation System will monitor as many as 8 independent streams, providing a quick visual indication of the signal quality of PCM data and verification that the received data corresponds to the expected frame characteristics.

Model 2618P PCM Frame Validation System

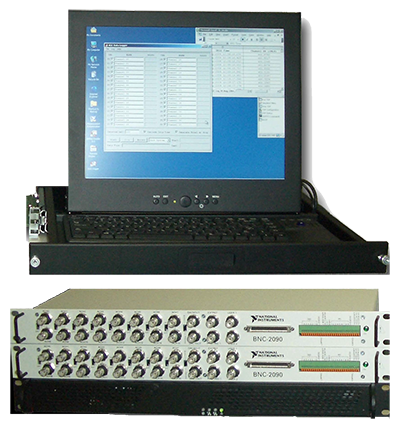

Model 2680P AGC Data Logging System

Acroamatics’ Model 2680P AGC Data Logger is a stand-alone telemetry data acquisition receiver performance monitoring unit that records and displays time tagged voltage samples to a log file.

Model 2680P AGC Data Logging System
