TMoIP/ Data Transport / Conversion

GDP Space Systems is a leading manufacturer of Data Transport and Communications Multiplexer products that meet a wide range of applications.

Our use of open standards ensures the longevity of the provided solution, which greatly reduces the long term risks associated with proprietary architectures.



GDP Space Systems has integrated the IRIG Chapter 7 (CH7) Serial-to-Ethernet function, supporting the IRIG Chapter 11 (CH11) protocol, as a new mode in the Model 2350 Telemetry Gateway. Initially, the Model 2350 Telemetry Gateway was designed to transport PCM Telemetry-over-IP utilizing a variety of protocols including IRIG218 (TMoIP Standard).

This new mode acquires the CH7 transport frame through one of its PCM input ports then processes and extracts the CH11 packets across the IP network. The IRIG CH7 standard defines the method for transporting variable-length data formats in a Chapter 4 (CH4) PCM stream. By inserting and encapsulating data from one or more data streams into a CH7 PCM stream, standard data formats defined by IRIG CH11 (recorders), IRIG CH24 TMNS (airborne network data acquisition) and standard Ethernet frames may be transported via Model 2350 Telemetry Gateway. At remote locations across the test infrastructure, processing and recording of the IRIG CH11 packets can be accomplished using Acroamatics’
Model 2900 Telemetry Data Processor or via 3rd party software processing applications, while being stored on the standalone Model 3500 Ethernet Recorder.

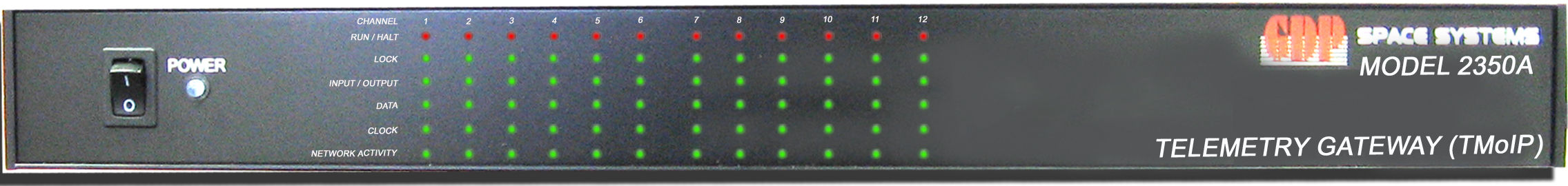

Model 2350-M6 / 2350-M12 Telemetry Gateway 6/12 Channel TM (PCM) over IP

The Model 2350 Telemetry Gateway provides the necessary signal processing to pass telemetry data either to or from an Ethernet network. Model 2350 is available in 6 and 12 channel configurations.

Model 2350-M6 / 2350-M12 Telemetry Gateway 6/12 Channel TM (PCM) over IP

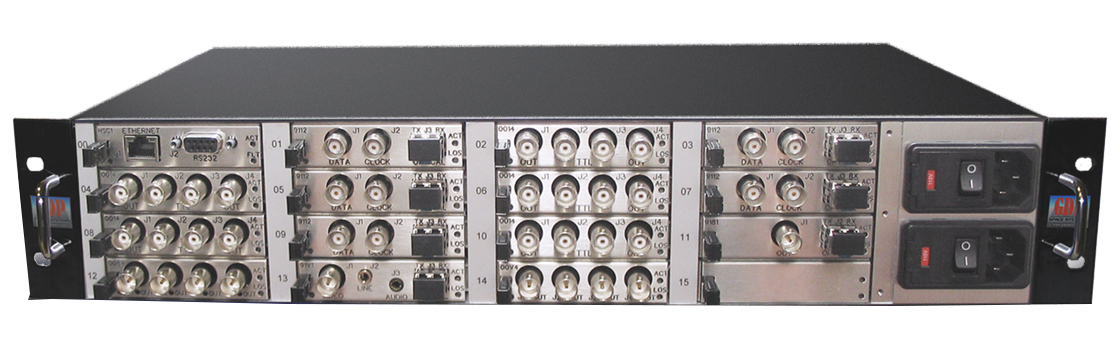

Model 9200 Series Data Conversion & Distribution System

The Model 9200 Series Data Conversion and Distribution System is a modular product that is scalable and can be user configured to convert and/or distribute a large selection of data channels. This rack mount unit can hold up to 16 various pluggable modules.

Model 9200 Series Data Conversion & Distribution System

Model 2350-M4 / 2351-M2 Telemetry Gateway (TMoIP)

The Model 2350A Telemetry Gateway provides the necessary signal processing to pass telemetry data either to or from an Ethernet network. The Model 2350-M4 is a rack mount unit and accommodates 2 or 4 channels. The Model 2351-M2 is a table-top unit that accommodates 2 channels.

Model 2350-M4 / 2351-M2 Telemetry Gateway (TMoIP)
